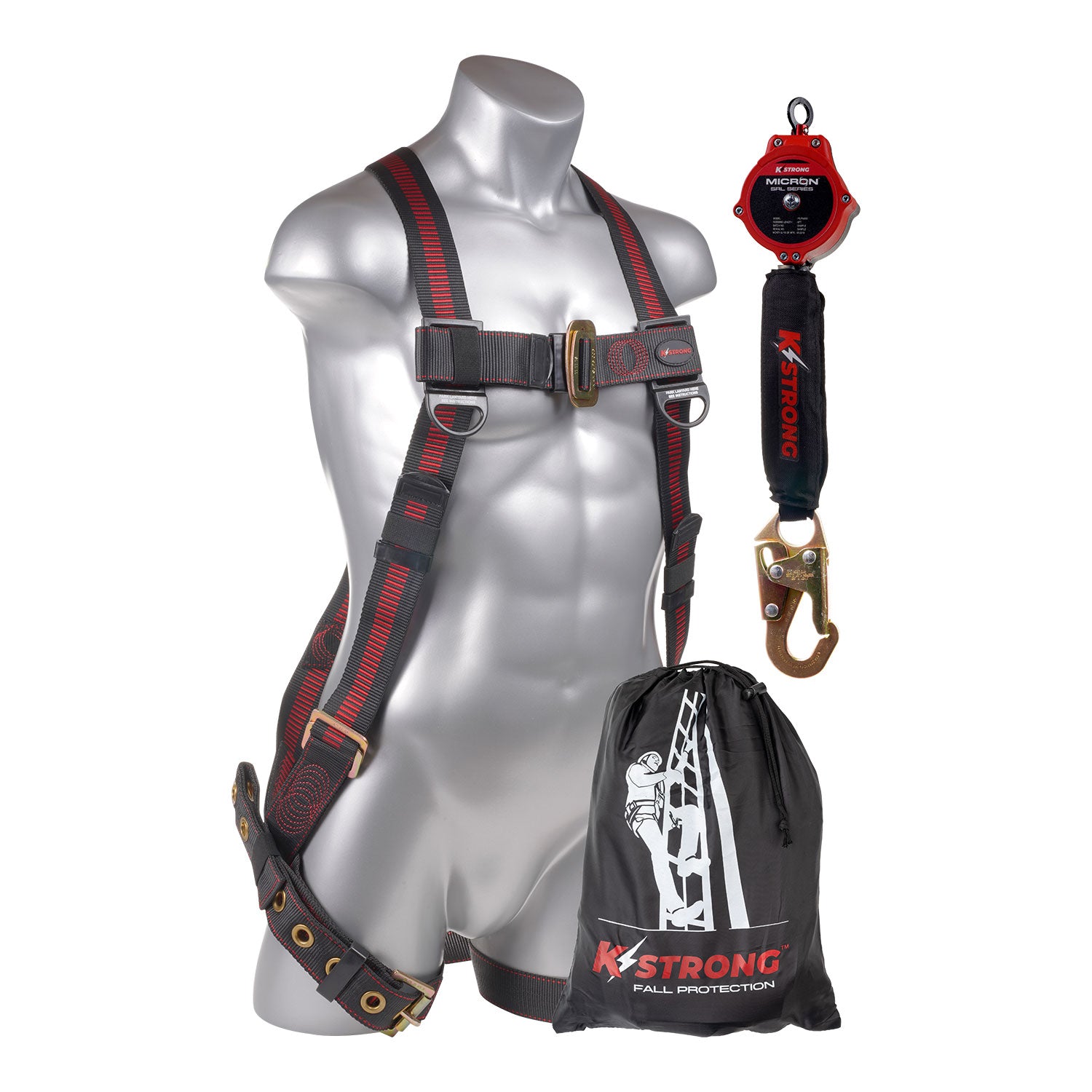

KStrong UFK20510 Aerial Kit, Elite 5 Point Full Body Harness, Dorsal D-ring, TB Legs and a Micron 6 ft SRL, Snap Hook

KStrong
KSTUFK20510SM
Direct from manufacturer
$279.00
Harness – UFH10201G KStrong® Kapture™ Elite 5-Point Adjustable Full Body Harness with One (1) Dorsal D-Ring and Tongue Buckle Leg Closures (ANSI) Key Features DESIGN: One dorsal attachment D-ring for fall arrest Adjustable Shoulder straps Adjustable tongue buckle leg straps WEBBING: Material: PolyesterWidth: 1.73 in. ± 0.04 in. (44mm ±...
Size :
$279.00
customers are viewing this product
Tags: /

Harness – UFH10201G

KStrong® Kapture™ Elite 5-Point Adjustable Full Body Harness with One (1) Dorsal D-Ring and Tongue Buckle Leg Closures (ANSI)

Key Features

DESIGN:

  • One dorsal attachment D-ring for fall arrest
  • Adjustable Shoulder straps
  • Adjustable tongue buckle leg straps

WEBBING:

Material: Polyester
Width: 1.73 in. ± 0.04 in. (44mm ± 1mm)
Breaking Strength: 5000 lbs.


STITCHING THREAD:

Material: High-tenacity polyester


METAL COMPONENT:

Material: Alloy Steel
Finish: Silver or Golden Yellow Galvanized


CAPACITY RANGE:

ANSI – 130 – 310 lbs.; OSHA – 420 lbs.


RELEVANT STANDARDS:

Meets or Exceeds ANSI Z359.11-2014


KIT MODEL HARNESS SIZE WEIGHT
UFK20510(S-M) UFH10201G(S-M) Small to Medium 3.52 lbs. ± 0.02 lbs. (1597 gm ±10 gm)
UFK20510(M-L) UFH10201G(M-L) Medium to Large 3.56 lbs. ± 0.02 lbs. (1615 gm ±10 gm)
UFK20510(L-XL) UFH10201G(L-XL) Large to X-Large 3.60 lbs. ± 0.02 lbs. (1633 gm ±10 gm)
UFK20510(XL-2XL) UFH10201G(XL-2XL) X-Large to 2XL 3.97 lbs. ± 0.02 lbs. (1801 gm ±10 gm)
UFK20510(2XL-3XL) UFH10201G(2XL-3XL) 2XL to 3XL 4.19 lbs. ± 0.02 lbs. (1901 gm ±10 gm)

Self-Retracting Lifeline – UFS350002

KStrong® 6 ft. Micron™ Lightweight SRL with one (1) snap hook at anchor end (ANSI). Includes one (1) quarter turn locking carabiner (UFC401101).

Key Features

PHYSICAL PARAMETERS:

  • Lightest available SRL in its range/class
  • Robust & durable plastic casing
  • Dyneema Webbing with Energy absorber
  • Steel snap hook at attachment end

LENGTH:

6 ft.


WEBBING:

Material: Dyneema Webbing 13/16” (21mm)
Min. Breaking strength: 4500 lbs.


WEIGHT:

3.51 lbs. ± 0.22 lbs. (1592 gm ± 100 gm)


USER CAPACITY:

OSHA Working Load Capacity: 420 lbs.
ANSI Working Load Capacity: 310 lbs.


RELEVANT STANDARDS:

Meets or Exceeds ANSI Z359.14-2021 Class 1
